Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike
Specification:
| Product name | 36V 15Ah/15.6Ah |
| Model | RSK-3615.6 |
| Rated Capacity | 15.6Ah |
| Nominal Voltage | 36V |
| Over discharge protection voltage | 30V±0.05V |
| Over charge protection voltage | 42V±0.05V |
| AC Impedance New Cell Max.(mΩ) | ≤100 mΩ |
| Maximum Continuous Charge Current | ≤5A adjustment |
| Maximum Continuous Discharge Current | ≤20A adjustment |
| Maximum Pulse discharge current | ≤30A adjustment |
| Operation Temperature Range | Charge: 0~45°C,Discharge: -20~60°C |
| Storage Temperature Range | Less than 1 year: -20~25°C |
| Less than 3 months: -20~40°C | |
| Storage Temperature Range | Less than 30 Days: -25°C~45°C |
| Less than 90 Days: -25°C~30°C | |
| Weight | Approx 3.5kg |
| Cycle Characteristic | 500 times |
Various cell brand available:
Various cell type available:
1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);
Domestic ICR21700 battery cell(4000mAh, 4500mAh, 5000mAh);
2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;
3. Samsung cell available:
| Samsung | INR1865035ET | 3500 | 10A | 3C |
| Samsung | INR1865025RM/RT | 2500 | 20A | 8C |
| Samsung | INR1865030Q/QM | 3000 | 15A | 5C |
| Samsung | INR2170050E | 4800 | 10A | 2C |
| Samsung | INR2170040T | 4000 | 30A | 7C |
| Samsung | INR2170050GB | 5000 | 10A | 2C |
| Samsung | INR2170050G | 5000 | 10A | 2C |
| Samsung | INR2170050S | 5000 | 35A | 7C |
Various assembling way:

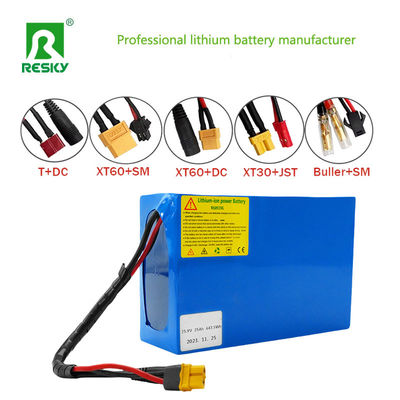

Input & output plug:
Various application:
Why choose us?
1. We accept small quantity order or big quantity order;
2. We could accept any customized lithium battery pack orders;
3. We could accept orders with different requirements;
4. We guarantee 100% QC pass before delivery;
5. Fast production time, we have enough stock cells;
6. Fast solution confirmation, and quotation confirmation;
Factory pictures:
Battery cell warehouse:
Battery shell warehouse:
Automatic cylindrical battery cell sorting machine:
Assembled battery pack:

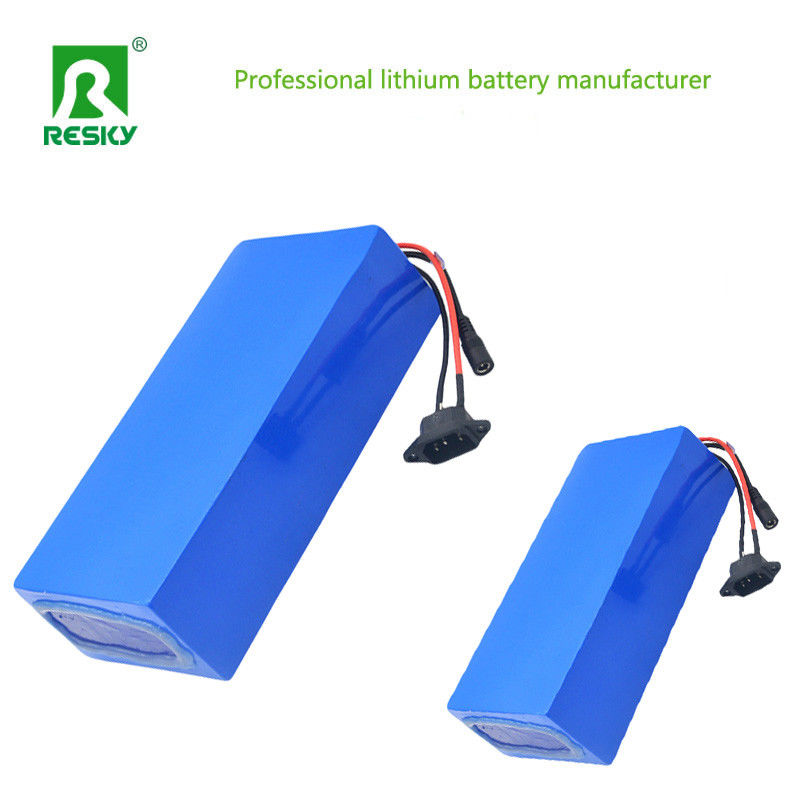

Battery Pictures:
|
