| ブランド名: | RESKY |
| モデル番号: | LP604050 |
| MOQ: | 10pcs |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙の箱 |
| 支払条件: | T/T、ウェスタンユニオン |
Product Description
Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Bluetooth Speaker Rechargeable Batteries
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 1500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1500mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V 0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 50±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Product features:
1. High energy density
The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.
2. High voltage
The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.
3. Good safety performance
The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.
4. Long cycle life
Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.
5. No pollution
Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.
6. No memory effect
The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.
7. Fast charging
Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.
8. Complete range of models
Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.
Application:
Wireless Communication Equipment:
Suitable for communication devices such as wireless landlines and intercoms, providing stable power supply.
Navigation and Smart Devices:
Commonly used in smart terminals such as electronic navigation systems, Bluetooth speakers, and thermometers, ensuring long-term device operation.
Consumer Electronics:
Includes beauty devices, medical equipment, shavers, fingerprint locks, and more, covering everyday consumer electronics scenarios.
Industrial and Security Equipment
Suitable for industrial instruments, industrial automation equipment, security monitoring equipment, and other applications requiring high battery life and stability.
Toys and Models:
RC models are suitable for small electronic products such as wireless remote-controlled toys and model equipment.

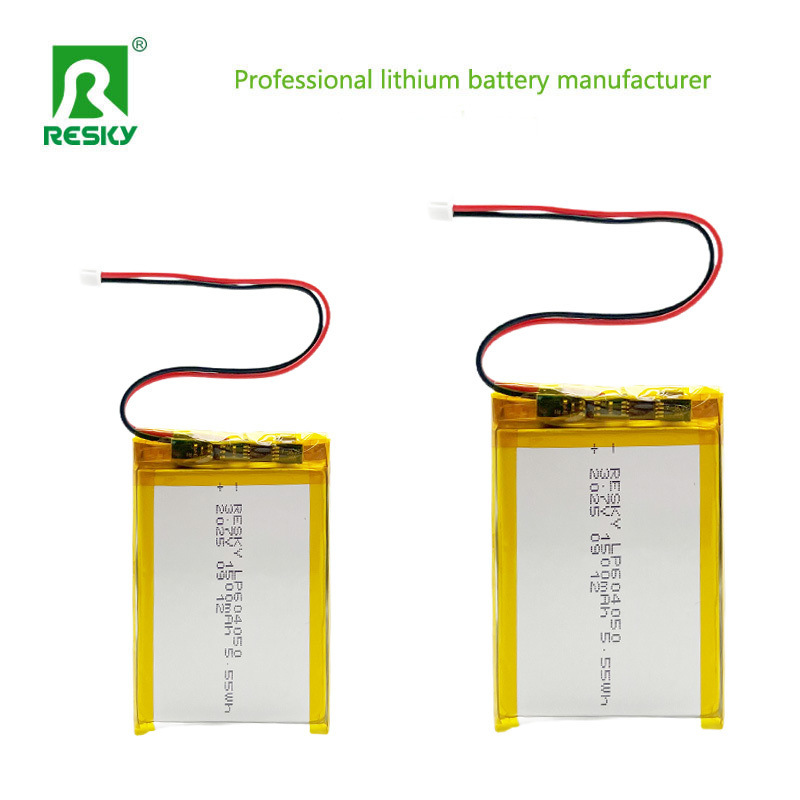

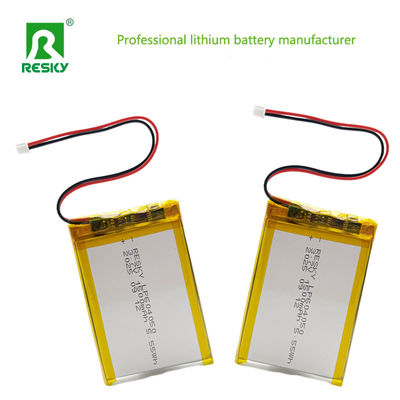

Product Picures:
|
| ブランド名: | RESKY |
| モデル番号: | LP604050 |
| MOQ: | 10pcs |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙の箱 |
| 支払条件: | T/T、ウェスタンユニオン |
Product Description
Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Bluetooth Speaker Rechargeable Batteries
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 1500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1500mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V 0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 50±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Product features:
1. High energy density
The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.
2. High voltage
The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.
3. Good safety performance
The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.
4. Long cycle life
Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.
5. No pollution
Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.
6. No memory effect
The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.
7. Fast charging
Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.
8. Complete range of models
Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.
Application:
Wireless Communication Equipment:
Suitable for communication devices such as wireless landlines and intercoms, providing stable power supply.
Navigation and Smart Devices:
Commonly used in smart terminals such as electronic navigation systems, Bluetooth speakers, and thermometers, ensuring long-term device operation.
Consumer Electronics:
Includes beauty devices, medical equipment, shavers, fingerprint locks, and more, covering everyday consumer electronics scenarios.
Industrial and Security Equipment
Suitable for industrial instruments, industrial automation equipment, security monitoring equipment, and other applications requiring high battery life and stability.
Toys and Models:
RC models are suitable for small electronic products such as wireless remote-controlled toys and model equipment.
Product Picures:
