| ブランド名: | RESKY |
| モデル番号: | LP703048 |
| MOQ: | 100pcs |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙箱 |
| 支払条件: | T/T、ウェスタンユニオン |

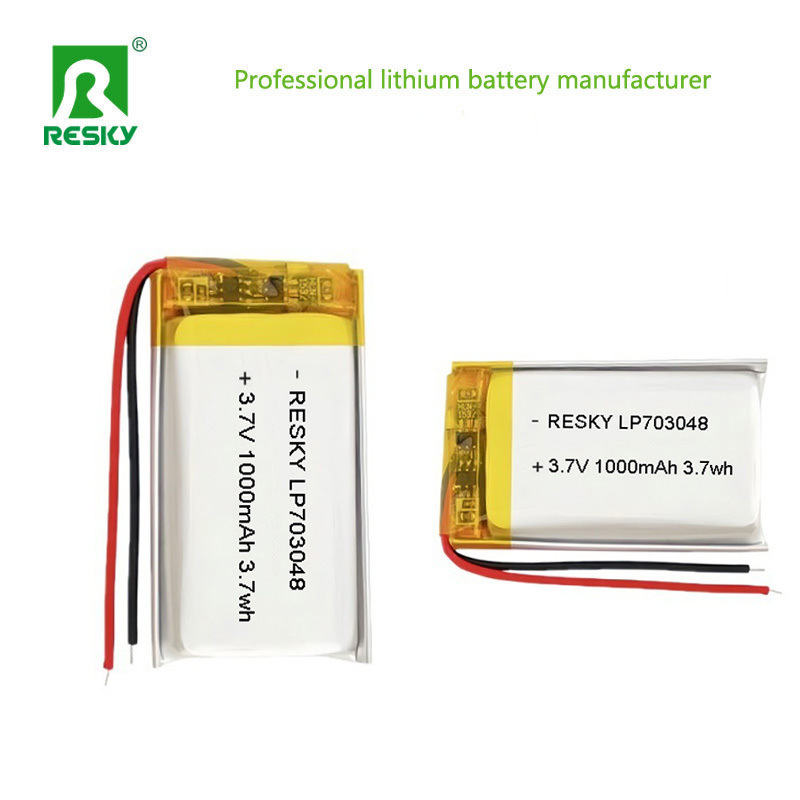

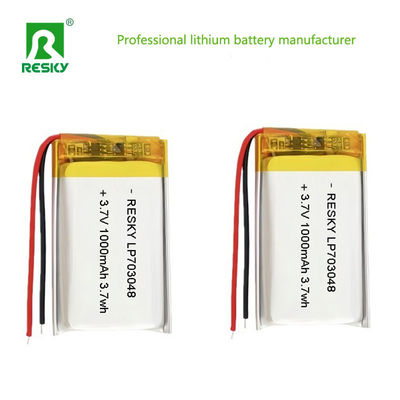

Rechargeable Lithium Polymer Batteries with high energy density and long cycle life for various electronic applications.
| Attribute | Value |
|---|---|
| Model NO. | LP703048 |
| Discharge Rate | Low Discharge Rate |
| Shape | Square Battery |
| Nominal Capacity | 1000mAh |
| Weight | 9g |
| Cycle Life | 500cycles |
| Warranty | 12months |
| Specification | 7*30*48mm |
| HS Code | 8507600090 |
| Supply Ability | 100000PCS/Day |
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7v 1000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V±0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 48±2mm (not including tabs) Width: 30±0.5mm Thickness: 7±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500times |
|
| ブランド名: | RESKY |
| モデル番号: | LP703048 |
| MOQ: | 100pcs |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙箱 |
| 支払条件: | T/T、ウェスタンユニオン |
Rechargeable Lithium Polymer Batteries with high energy density and long cycle life for various electronic applications.
| Attribute | Value |
|---|---|
| Model NO. | LP703048 |
| Discharge Rate | Low Discharge Rate |
| Shape | Square Battery |
| Nominal Capacity | 1000mAh |
| Weight | 9g |
| Cycle Life | 500cycles |
| Warranty | 12months |
| Specification | 7*30*48mm |
| HS Code | 8507600090 |
| Supply Ability | 100000PCS/Day |
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7v 1000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 1000mAh 0.2C Discharge |
| 5 | Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V±0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| 12 | Storage temperature | -10°C~ +45°C |
| 13 | Dimension | Length: 48±2mm (not including tabs) Width: 30±0.5mm Thickness: 7±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500times |
