| ブランド名: | RESKY |
| モデル番号: | LI-7.4-2600 |
| MOQ: | 100pcs |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙箱 |
| 支払条件: | T/T、ウェスタンユニオン |
| Parameter | Specification |
|---|---|

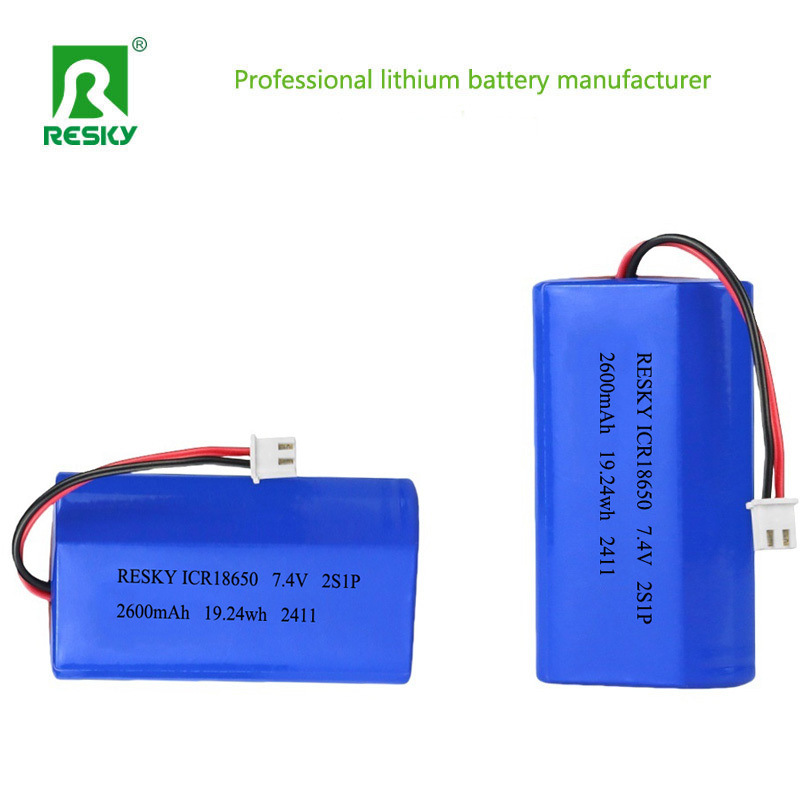

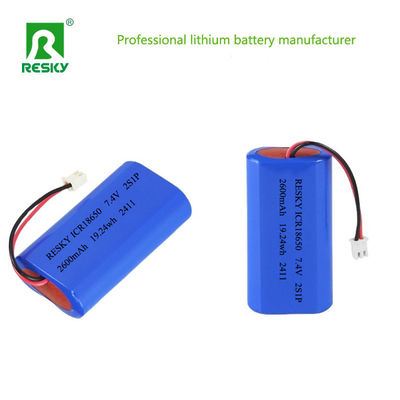

| Nominal Voltage | 7.4V (two 3.7V 18650 cells in series) |
| Operating Voltage Range | 6.0V-8.4V |
| Rated Capacity | 2600mAh (at 0.2C discharge rate) |
| Charging Voltage | 8.4V standard |
| Charging Current | 0.2C-1C (520mA-2600mA recommended) |
| Discharge Current | ≤1C (2600mA) continuous, 2C (5200mA) peak |
| Cycle Life | ≥80% capacity after 500 cycles, ≥60% after 1000 cycles |
| Internal Resistance | ≤100mΩ (total pack including connections) |
| Safety Thresholds | Overcharge: 8.7±0.05V, Over-discharge: 5.5±0.1V |
Battery packs operate within specific temperature ranges. Malfunctioning temperature control can lead to thermal runaway - a chain reaction causing rapid heat generation, potentially resulting in fire or explosion.
Excessive heat causes battery swelling from internal pressure increases. Severe cases may lead to electrolyte leakage, which is flammable and corrosive, posing fire and chemical burn risks.
|
| ブランド名: | RESKY |
| モデル番号: | LI-7.4-2600 |
| MOQ: | 100pcs |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙箱 |
| 支払条件: | T/T、ウェスタンユニオン |
| Parameter | Specification |
|---|---|
| Nominal Voltage | 7.4V (two 3.7V 18650 cells in series) |
| Operating Voltage Range | 6.0V-8.4V |
| Rated Capacity | 2600mAh (at 0.2C discharge rate) |
| Charging Voltage | 8.4V standard |
| Charging Current | 0.2C-1C (520mA-2600mA recommended) |
| Discharge Current | ≤1C (2600mA) continuous, 2C (5200mA) peak |
| Cycle Life | ≥80% capacity after 500 cycles, ≥60% after 1000 cycles |
| Internal Resistance | ≤100mΩ (total pack including connections) |
| Safety Thresholds | Overcharge: 8.7±0.05V, Over-discharge: 5.5±0.1V |
Battery packs operate within specific temperature ranges. Malfunctioning temperature control can lead to thermal runaway - a chain reaction causing rapid heat generation, potentially resulting in fire or explosion.
Excessive heat causes battery swelling from internal pressure increases. Severe cases may lead to electrolyte leakage, which is flammable and corrosive, posing fire and chemical burn risks.
