| ブランド名: | RESKY |
| モデル番号: | LP501515 |
| MOQ: | 1000個 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙箱 |
| 支払条件: | ウェスタンユニオン、T/T |
| Parameter | Specification |
|---|---|

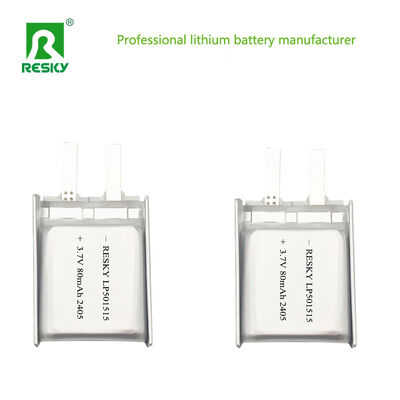

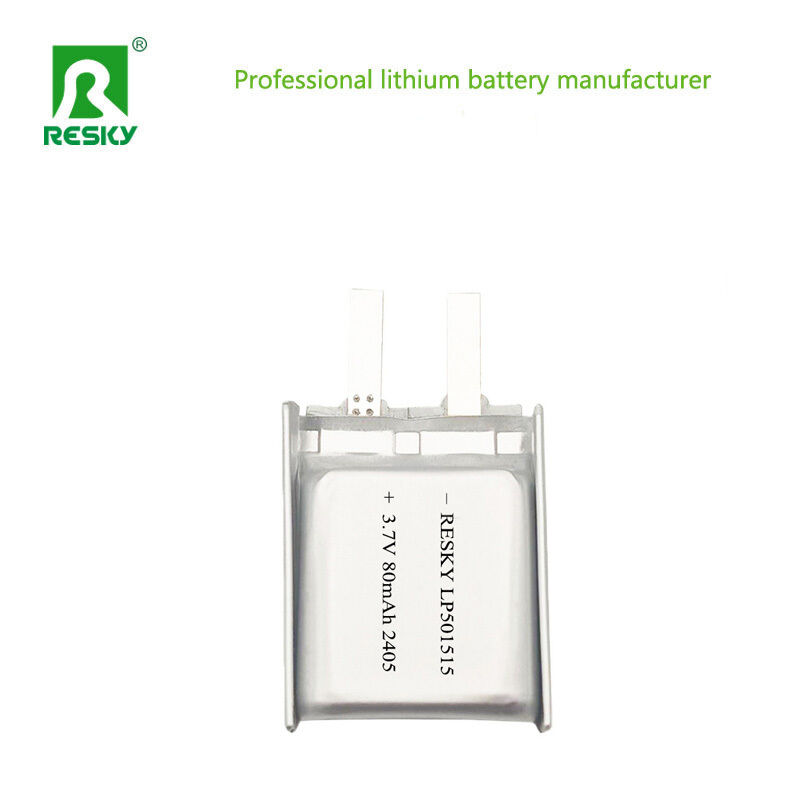

| Battery Type | 3.7V 80mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 80mAh @ 0.2C Discharge |
| Charge Current | Standard: 0.5C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max Charge Current | 1.0C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V ±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 15±0.5mm (excluding tabs) Width: 15±0.5mm Thickness: 5±0.2mm |
| Drop Test | 1m drop onto concrete twice - No fire, no leakage |
| Cycle Life | ≥500 cycles |
|
| ブランド名: | RESKY |
| モデル番号: | LP501515 |
| MOQ: | 1000個 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 紙箱 |
| 支払条件: | ウェスタンユニオン、T/T |
| Parameter | Specification |
|---|---|
| Battery Type | 3.7V 80mAh LiPo Battery |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 80mAh @ 0.2C Discharge |
| Charge Current | Standard: 0.5C Rapid: 1.0C |
| Standard Charging Method | 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C |
| Charging Time | Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.) |
| Max Charge Current | 1.0C |
| Max Discharge Current | 1.0C |
| Discharge Cut-off Voltage | 2.5V ±0.25V (0.2C) |
| Operating Temperature | Charging: 0°C ~45°C Discharging: 0°C ~45°C |
| Storage Temperature | -10°C ~ +45°C |
| Dimensions | Length: 15±0.5mm (excluding tabs) Width: 15±0.5mm Thickness: 5±0.2mm |
| Drop Test | 1m drop onto concrete twice - No fire, no leakage |
| Cycle Life | ≥500 cycles |
